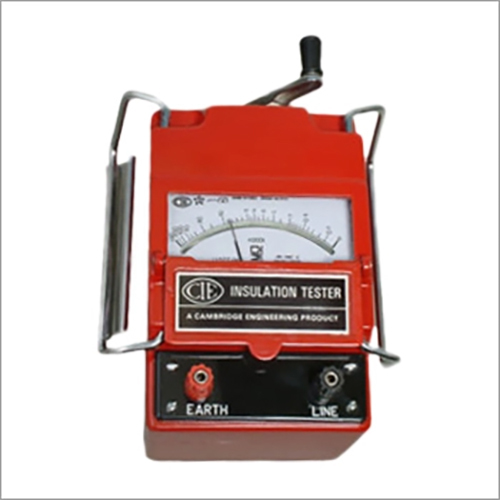

INSULATION TESTER Hand Driven Generator Type 1000V /200Megohm

INSULATION TESTER Hand Driven Generator Type 1000V /200Megohm Specification

Accuracy
5% of reading

Usage & Applications
Testing the insulation resistance of wires, cables, and electrical equipment

Resistant Feature
Shock Resistant, Dust Proof

Pressure
Atmospheric

Batteries Type
Not Required (Hand Driven)

Product Type
Hand Driven Insulation Tester

Material
ABS & Metal

Measuring Voltage Range
1000V DC

Operating Temperature
0C to 50C

Frequency (MHz)
DC Operation (Not Applicable)

Insulation Box
Shock proof ABS Body

Protection System
Internal Fuse Protected

Size
Compact

Color
Black & Grey

Dimension (L*W*H)
170mm x 165mm x 120mm

Weight
1.2 kg (Approx)

Test Leads
Supplied with high-quality test leads and probes

Scale Graduation
Clearly Marked

Storage Temperature
-20°C to 70°C

Overload Protection
Up to 1200V AC/DC

Generator Type
Hand-Cranked Dynamo

Standards Compliance
IS / IEC 61557-2

Display Type
Analog Scale

Maximum Measuring Resistance
200 Megohms

Speed of Rotation
160 RPM for full scale

INSULATION TESTER Hand Driven Generator Type 1000V /200Megohm Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA)

Supply Ability
5 Per Day

Delivery Time
7 Days

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About INSULATION TESTER Hand Driven Generator Type 1000V /200Megohm

OUTPUT VOLTAGE :1000V DC AND MEASURABLE INSULATION RANGE: 0-200MEGOHM AND INFINITY

INSULATION TESTER, HAND DRIVEN GENERATOR TYPE

SCALE LENGTH : 90mm. (approx)
ACCURACY : Confirms to ISS:2992-1987
ROTATION SPEED : 160 or more r.p.m.
WEIGHT : 2.5 kg (approx)
DIMENSIONS (in mm) : 110 x 128 x 195 (approx)
HIGH VOLTAGE TEST SET : Withstands minimum 2000 Volts or(Rated Voltage+1000)
Voltage A.C. (rms) between the electrical circuit & the handle
for one minute.
INSULATION RESISTANCE TEST : Better than 50 Mega ohms at 500V between the electrical circuit and the containing case.
RESPONSE TIME : 3 seconds.

Highly Reliable Insulation Measurement

Engineered for precise assessment of insulation resistance, this tester delivers results up to 200 Megohms with 5% accuracy. Its analog scale is easy to read, which simplifies onsite inspections and promotes safe electricity usage.

Hand-Driven Efficiency & Durability

This tester uses a hand-cranked generator, requiring no batteries and ensuring long-term functionality in field environments. Its shock-proof and dust-resistant ABS body, complemented by reliable internal fuse protection, makes it dependable in rugged conditions.

Compliance and Application Versatility

Conforming to IS/IEC 61557-2 standards, the tester suits electrical professionals including distributors, exporters, manufacturers, and traders. Designed for Indian climates, it performs well within a wide temperature range, making it a versatile choice for electrical maintenance.

FAQs of INSULATION TESTER Hand Driven Generator Type 1000V /200Megohm:

Q: How does the hand-driven generator power the insulation tester?

A: The insulation tester operates using a hand-cranked dynamo, which generates the required 1000V DC measuring voltage simply by manually rotating the handleno batteries are needed.

Q: What materials ensure the durability and protection of this insulation tester?

A: The tester features a shock-proof and dust-resistant ABS body with metal components. It also has an internal fuse for protection against voltages up to 1200V AC/DC, enhancing safety and longevity.

Q: When should you use this insulation tester for electrical equipment maintenance?

A: Use this tester during routine electrical inspections, installation checks, and maintenance periods to measure insulation resistance in wires, cables, and electrical devices. It helps in detecting potential faults before equipment failure.

Q: Where can the insulation tester be effectively used?

A: This compact device is suitable for use in various environments due to its robust construction and broad operating temperature range (0C to 50C), making it ideal for onsite testing, workshops, and industrial settings across India.

Q: What is the process for measuring insulation resistance with this tester?

A: Connect the supplied test leads to the item under test, rotate the generator handle at about 160 RPM for full-scale reading, and observe the insulation resistance displayed on the analog meter.

Q: How does this insulation tester benefit electrical professionals and organizations?

A: By offering clear, accurate insulation readings up to 200 Megohms and requiring no batteries for operation, the tester promotes efficient preventive maintenance, reducing downtime and enhancing electrical safety for distributors, manufacturers, and service technicians.

Q: What standards does the insulation tester comply with for quality assurance?

A: The device adheres to IS/IEC 61557-2 standards, ensuring reliable performance and safety in insulation resistance measurements for electrical installations and equipment.
