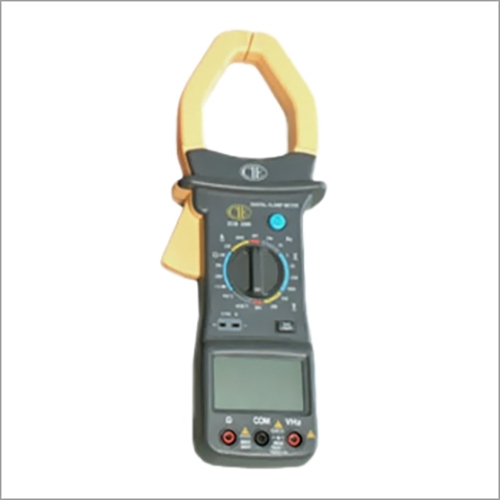

Digitals Clamp Meter

Digitals Clamp Meter Specification

Accuracy
(1.5%+5)

Resistant Feature
Shock Proof, Drop Resistant

Usage & Applications
Electrical diagnostic, current measurement, voltage and continuity testing

Pressure
Atmospheric

Batteries Type
2 x 1.5V AAA Batteries

Product Type
Digital Clamp Meter

Material
ABS Plastic Body

Measuring Voltage Range
200mV to 600V AC/DC

Operating Temperature
0C to 40C

Frequency (MHz)
50/60Hz Measurement Capability

Insulation Box
Yes, provided for safety and durability

Protection System
Overload protection, Double insulation

Size
Standard Palm Size

Color
Yellow & Black

Dimension (L*W*H)
215mm x 70mm x 35mm

Weight
Approx 320g

Sample Rate
3 times/second

Continuity Test
Yes, with audible indication

Auto Power Off
Yes

Low Battery Indicator
Yes

Operating Humidity
75% RH (non-condensing)

Resistance Measurement
Up to 20M

Storage Temperature
-20C to 60C

Display Type
Digital LCD Display

Max Current Measurement
Up to 1000A AC

Safety Rating
CAT III 600V

Diode Test
Yes

Data Hold Function
Yes

Jaw Opening Size
Up to 30mm conductor

Digitals Clamp Meter Trade Information

Payment Terms
Cheque

Supply Ability
1 Piece Per Week

Delivery Time
1 Week

Packaging Details
Customized Packing

Main Export Market(s)
Africa, Asia

Main Domestic Market
All India

About Digitals Clamp Meter

DIGITAL CLAMP METER, 1000 A AC

DISPLAY : LCD, 3 digit, 1999 counts, updates 2-3/sec
POLARITY INDICATION : _ displayed for negative polarity.
OVER RANGE INDICATION : Only figure 1 on the display (at MSB)
JAW OPENING CAPABILITY : 55mm (Max conductor size)
POWER : 9V battery, NEDA 1604 or IEC 6F22
LOW BATTERY INDICATION : appears on the display
OPERATING ENVIRONMENT : 0C TO 40C
STORAGE TEMPERATURE : -10C TO 50C
ALTITUDE : 2000m
DIMENSIONS : 282mm x 104mm x 47mm
WEIGHT : Approx. 500g

Advanced Measurement Features

This clamp meter offers comprehensive measurement capabilities, including current up to 1000A AC, voltage from 200mV to 600V AC/DC, and resistance up to 20M. Its sample rate of three times per second ensures quick, reliable readings. The integrated frequency measurement for 50/60Hz further enhances its utility for diverse electrical applications.

Safety and Durability Assurance

Designed with user protection in mind, the meter is classified at CAT III 600V and includes features like overload protection, double insulation, shock- and drop-resistant ABS plastic body. An insulated box is provided to ensure safe storage and longevity, making it suitable for demanding environments.

Ease of Use and Portability

Weighing approximately 320g and sized to fit comfortably in your palm, the clamp meter is both lightweight and portable. User-friendly functions like data hold, auto power-off, audible continuity test, and a clear low battery indicator make operation straightforward even for extended field tasks.

FAQs of Digitals Clamp Meter:

Q: How do I operate the clamp meter to measure current?

A: To measure current, open the clamp and encircle a single conductor (up to 30mm in diameter) with the jaws. The digital LCD display will show the current reading up to a maximum of 1000A AC, providing instant results with a sample rate of three times per second.

Q: What safety features does this clamp meter offer during usage?

A: This meter is designed with a CAT III 600V safety rating, overload protection, double insulation, and a shock-proof, drop-resistant ABS body. The included insulated box adds another layer of protection during storage and transport, ensuring safe and reliable operation.

Q: When should I replace the batteries in this meter?

A: Replace the two AAA batteries whenever the low battery indicator appears on the display. This ensures consistent accuracy and reliable performance during electrical diagnostics.

Q: Where can this clamp meter be effectively used?

A: The clamp meter is suitable for use in homes, commercial buildings, industrial sites, workshops, and fields. Its ideal for electricians, technicians, and engineers performing current, voltage, resistance, continuity, and diode tests in atmospheric pressure conditions.

Q: What is the process for performing a continuity test with this device?

A: To conduct a continuity test, connect the meters probes to the circuit under inspection. If continuity is present, the meter emits an audible indication, confirming connection integrity quickly and efficiently.

Q: What are the main benefits of using this clamp meter?

A: Benefits include accurate readings for high currents (up to 1000A AC), multi-mode testing (voltage, resistance, continuity, diode), enhanced safety features, and ergonomic portability. Its robust build and clear LCD display make it a reliable tool for routine and advanced electrical diagnostics.
